    Vari Sparkline
    In This Topic

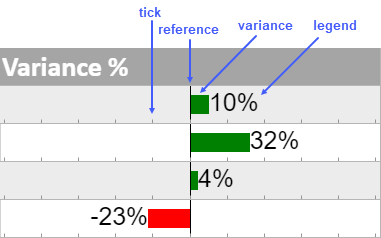

    Vari sparklines are used to compare two sets of data and calculate the difference, or variance, between the values.

    The vari sparkline formula has the following syntax:

    =VARISPARKLINE(variance, [reference, mini, maxi, mark, tickunit, legend, colorPositive, colorNegative, vertical])

    The formula options are described below:

    Option Description
    variance A number or reference that represents the bar length, such as 2 or "A1".

    reference

    Optional

    A number or reference that represents the location of the reference line, such as 0 or "A2".

    The default value is 0.

    mini

    Optional

    A number or reference that represents the minimum value of the sparkline, such as -5 or "A3".

    The default value is -1.

    maxi

    Optional

    A number or reference that represents the maximum value of the sparkline, such as 5 or "A4".

    The default value is 1.

    mark

    Optional

    A number or reference that represents the position of the mark line, such as 3 or "A5".

    tickunit

    Optional

    A number or reference that represents a tick unit, such as 1 or "A6".

    The default value is 0.

    legend

    Optional

    A boolean that represents whether to display the text. The default is optional.

    The default value is FALSE.

    colorPositive

    Optional

    A string that represents the color scheme for variance and is larger than reference.

    The default value is "green".

    colorNegative

    Optional

    A string that represents the color scheme for variance and is smaller than reference.

    The default value is "red".

    vertical

    Optional

    A boolean that represents whether to display the sparkline vertically.

    The default value is FALSE.

    Usage Scenario

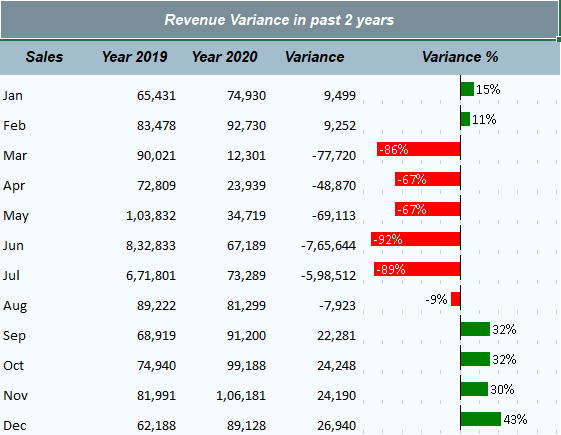

    Consider a scenario where a company wants to display the revenue variation between two years, for example, in 2019 and 2020. A vari sparkline helps create a graphical representation of the data. It compares the revenue differences and presents the variance as shown in the image below.

    C#
    Copy Code
    // Set data
    worksheet.SetValue(1, 0, new object[,]
    {
        {"Sales","Year 2019","Year 2020","Variance","Variance %" },
        {"Jan",65431,74930,null,null},
        {"Feb",83478,92730,null,null},
        {"Mar",90021,12301,null,null},
        {"Apr",72809,23939,null,null},
        {"May",103832,34719,null,null},
        {"Jun",832833,67189,null,null},
        {"Jul",671801,73289,null,null},
        {"Aug",89222,81299,null,null},
        {"Sep",68919,91200,null,null},
        {"Oct",74940,99188,null,null},
        {"Nov",81991,106181,null,null},
        {"Dec",62188,89128,null,null}
    });

    // Set formula for difference in column D and VarianceSparkline formula in column E
    for (int i = 3; i < 15; i++)
    {
        worksheet.Cells[$"D{i}"].Formula = "(C" + i + "-B" + i + ")";
        worksheet.Cells[$"E{i}"].Formula2 = "VARISPARKLINE(ROUND((D" + i + ")/(B" + i + "),2),0,-1,1,,0.2,TRUE)";
    }

    Visual Basic
    Copy Code
    'Set data
    worksheet.SetValue(1, 0, New Object(,) {
        {"Sales", "Year 2019", "Year 2020", "Variance", "Variance %"},
        {"Jan", 65431, 74930, Nothing, Nothing},
        {"Feb", 83478, 92730, Nothing, Nothing},
        {"Mar", 90021, 12301, Nothing, Nothing},
        {"Apr", 72809, 23939, Nothing, Nothing},
        {"May", 103832, 34719, Nothing, Nothing},
        {"Jun", 832833, 67189, Nothing, Nothing},
        {"Jul", 671801, 73289, Nothing, Nothing},
        {"Aug", 89222, 81299, Nothing, Nothing},
        {"Sep", 68919, 91200, Nothing, Nothing},
        {"Oct", 74940, 99188, Nothing, Nothing},
        {"Nov", 81991, 106181, Nothing, Nothing},
        {"Dec", 62188, 89128, Nothing, Nothing}
    })

    'Set formula for difference in column D and VarianceSparkline formula in column E
    For i As Integer = 3 To 15 - 1
        worksheet.Cells($"D{i}").Formula = "(C" & i & "-B" & i & ")"
        worksheet.Cells($"E{i}").Formula2 = "VARISPARKLINE(ROUND((D" & i & ")/(B" & i & "),2),0,-1,1,,0.2,TRUE)"
    Next


    Using the Spread Designer

    1. Type data in a cell or a column or row of cells in the designer.
    2. Select a cell for the sparkline.
    3. Select the Insert menu.
    4. Select a sparkline type.
    5. Set the Data Range in the Create Sparklines dialog (such as =Sheet1!$E$1:$E$3).
      Alternatively, set the range by selecting the cells in the range using the pointer.

      Sparkline Dialog in Spread Designer

      You can also set additional sparkline settings in the dialog if available.

    6. Select OK.
    7. Select Apply and Exit from the File menu to save your changes and close the designer.
