    Scatter Sparkline
    In This Topic

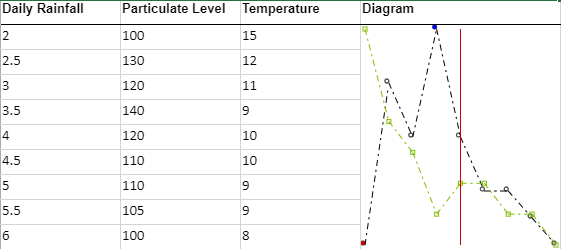

    Scatter sparklines plots numerical data, with one variable on each axis, to visualize correlations between them. It can also be used to compare numeric values, such as scientific, statistical, and engineering data as shown in the image below.

    The scatter sparkline formula has the following syntax:

    =SCATTERSPARKLINE(points1, [points2, minX, maxX, minY, maxY, hLine, vLine, xMinZone, xMaxZone, yMinZone, yMaxZone, tags, drawSymbol, drawLines, color1, color2, dash])

    The formula options are described below:

    Option Description
    points1 The first xy data series. If the row count is greater than or equal to the column count, use data from the first two columns. The first column contains x-values and the second column contains y-values. If the row count is less than the column count, use data from the first two rows. The first row contains x-values and the second row contains y-values.

    points2

    Optional

    The second xy data series. If the row count is greater than or equal to the column count, use data from the first two columns. The first column contains x-values and the second column contains y-values. If the row count is less than the column count, use data from the first two rows. The first row contains x-values and the second row contains y-values.

    minX

    Optional

    The x-minimum limit of both series, each series has its own value if it is omitted.

    maxX

    Optional

    The x-maximum limit of both series, each series has its own value if it is omitted.

    minY

    Optional

    The y-minimum limit of both series, each series has its own value if it is omitted.

    maxY

    Optional

    The y-maximum limit of both series, each series has its own value if it is omitted.

    hLine

    Optional

    The horizontal axis position, there is no line if it is omitted.

    vLine

    Optional

    The vertical axis position, there is no line if it is omitted.

    xMinZone

    Optional

    The x-minimum value of the gray zone, there is no grey zone if any of these four parameters are omitted.

    xMinZone

    Optional

    The x-maximum value of the gray zone, there is no grey zone if any of these four parameters are omitted.

    yMinZone

    Optional

    The y-minimum value of the gray zone, there is no grey zone if any of these four parameters are omitted.

    yMaxZone

    Optional

    The y-maximum value of the gray zone, there is no grey zone if any of these four parameters are omitted.

    tags

    Optional

    If this option is true, mark the point at which the y-value is the maximum of the first series as "#0000FF", and mark the point at which the y-value is the minimum of the first series as "#CB0000". This option is false if it is omitted.

    drawSymbol

    Optional

    If this option is true, draw each point as a symbol. The symbol of the first series is a circle, and the symbol of the second series is a square.

    This option is true if it is omitted.

    drawLines

    Optional

    If this option is true, connect each point with a line by sequence in each series.

    This option is false if it is omitted.

    color1

    Optional

    The color string of the first point series.

    The value is "#969696" if it is omitted.

    color2

    Optional

    The color string of the second point series.

    The value is "#CB0000" if it is omitted.

    dash

    Optional

    If this option is true, the line is a dashed line; otherwise, the line is a full line.

    This option is false if it is omitted.

    Usage Scenario

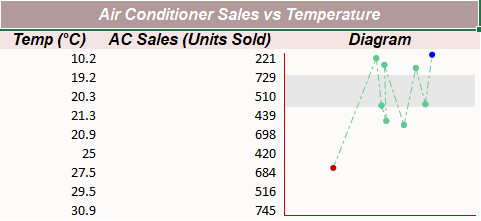

    Consider a scenario where an electronic megastore wants to analyze the relationship between the sales of air conditioning units and the average temperature in a given week. A scatter sparkline can showcase the correlation between both of these sets of values.

    C#
    Copy Code
    // Set data for sparkline
    worksheet.SetValue(1, 0, new object[,]
    {
        { "Temp (°C)","AC Sales (Units Sold)" , "Diagram"},
        { 10.2,221, "null"},
        { 19.2,729,"null"},
        { 20.3,510,"null"},
        { 21.3,439,"null"},
        { 20.9,698,"null"},
        { 25,420,"null"},
        { 27.5,684,"null"},
        { 29.5,516,"null"},
        { 30.9,745,"null"}
    });

    // Merge cells of column C
    worksheet.Cells["C3:C11"].Merge();
    // Apply formula for ScatterSparkline
    worksheet.Cells[2, 2].Formula = "SCATTERSPARKLINE(A3:B11,,0,40,0,750,0,0,0,40,500,650,TRUE,TRUE,TRUE,\"#63C890\",,TRUE)";

    Visual Basic
    Copy Code
    'Set data for sparkline
    worksheet.SetValue(1, 0, New Object(,) {
        {"Temp (°C)", "AC Sales (Units Sold)", "Diagram"},
        {10.2, 221, "null"},
        {19.2, 729, "null"},
        {20.3, 510, "null"},
        {21.3, 439, "null"},
        {20.9, 698, "null"},
        {25, 420, "null"},
        {27.5, 684, "null"},
        {29.5, 516, "null"},
        {30.9, 745, "null"}
    })

    'Merge cells of column C
    worksheet.Cells("C3:C11").Merge()
    'Apply formula for ScatterSparkline
    worksheet.Cells(2, 2).Formula = "SCATTERSPARKLINE(A3:B11,,0,40,0,750,0,0,0,40,500,650,TRUE,TRUE,TRUE,""#63C890"",,TRUE)"


    Using the Spread Designer

    1. Type data in a cell or a column or row of cells in the designer.
    2. Select a cell for the sparkline.
    3. Select the Insert menu.
    4. Select a sparkline type.
    5. Set the Data Range in the Create Sparklines dialog (such as =Sheet1!$E$1:$E$3).
      Alternatively, set the range by selecting the cells in the range using the pointer.

      You can also set additional sparkline settings in the dialog if available.

    6. Select OK.
    7. Select Apply and Exit from the File menu to save your changes and close the designer.
